Welded double bar panels and posts.
Safe and sturdy
Our fence system for sport areas, schools and public spaces is a good and proffessional fence solution, offering a sturdy and secure solution around the sport field.
Heavy welded mesh panels with double horizontal wires and single vertical wires in HDG steel alternatively HDG + PVC coating (RAL 6005, RAL 9005). Posts with cover plates and noice reduction connector. Standard system heights: 3 m, 4 m, 5 m and 6 m
A combination with panels up to 2, 3 or 4 m, plus plastic net up to full fencing height can be offered.
Double bar panels type 8/6/8
Horizontal wires: 2×8 mm
Vertical wires: 6 mm
Mesh size: 50×200 mm
Panel heights: 1030 mm, 2030 mm
Width: 2500 mm

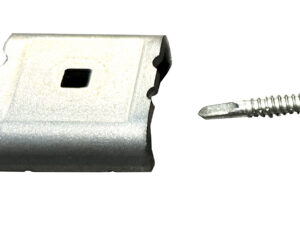

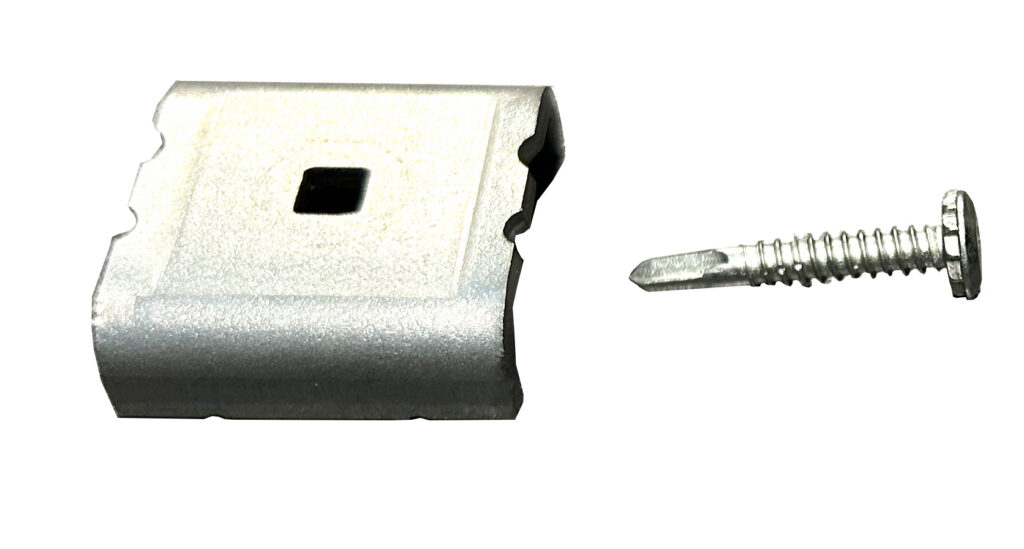

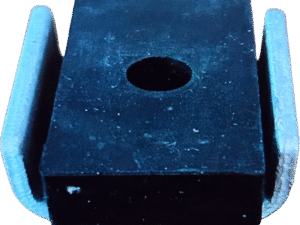

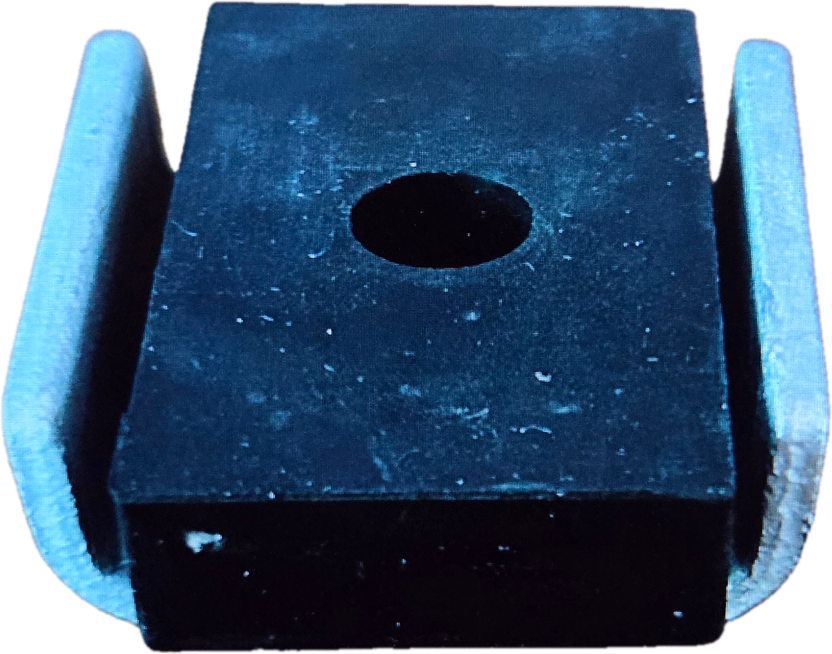

Posts in HDG alt. HDG + PVC coating (RAL 6005, RAL 9005). The panels are fixed to the posts with full height cover plates for optimal quality. The posts are equipped with noice reduction connector.
|System height||Post section|
|3 m||80x40x2x3800 mm|
|4 m||80x40x3x4800 mm alternatively 100x40x3x4 800 mm|
|5 m||100x40x3x6000 mm|
|6 m||120x40x3x7000 mm|
The system also include single or double swing gates in HDG alt. HDG + PVC coating for accessing the sport field.
- Other RAL colors on request
- Other mesh sizes on request
- Posts with foot plate
- Other system heights
